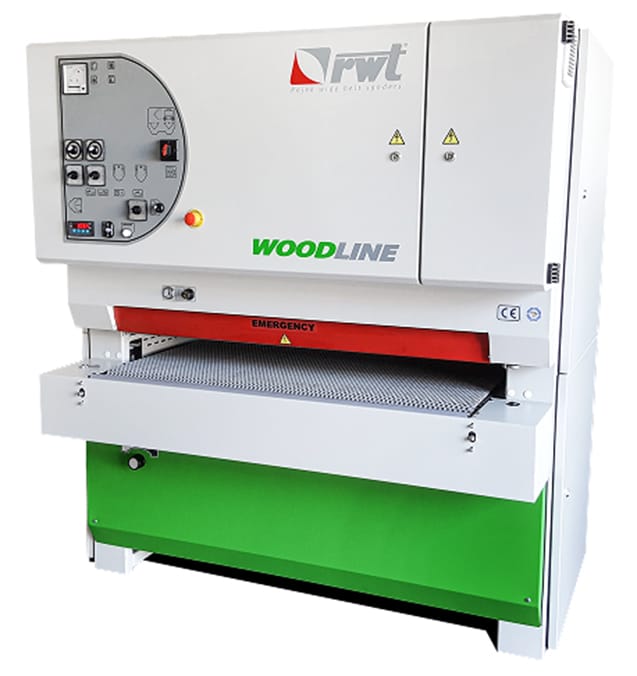

Brushing and texturing machine M line
Brushing machines
Disc sanding brushes with a diameter of 150 mm and replaceable abrasive inserts for sanding profiled parts made of solid wood, MDF and lacquered parts.
Sanding brush with a diameter of 300 mm and replaceable inserts for sanding profiled parts made of solid wood, MDF and lacquered parts.
Texturing machines
An abralon or stainless steel texturing brush with a diameter of 200 mm for texturing and structuring solid wood surfaces.
Basic machine parameters
- Working width 950, 1100, 1300mm
- Počet jednotek 1 - 4
- Brush diameter 200 (300)mm
- Number of discs in the unit X - 10 - 12

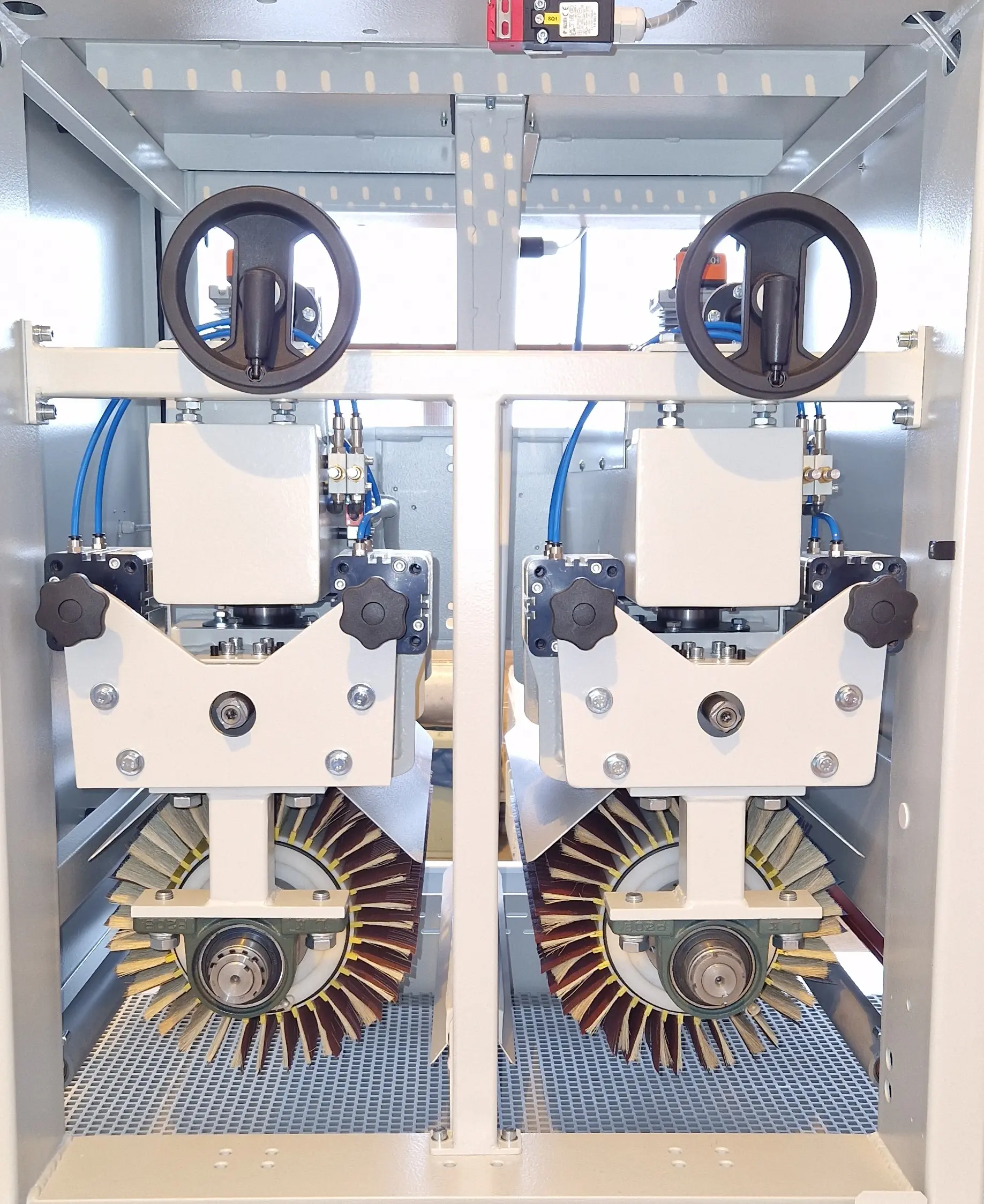

Working units of the brushing machines

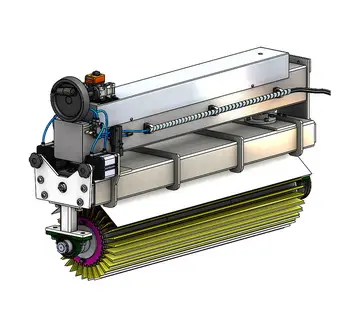

B unit
A 300 mm sanding brush with replaceable inserts for sanding profiled parts and finishing.

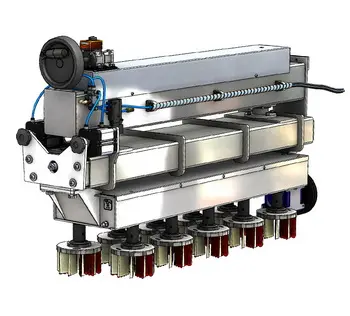

D - unit
A disc brushing unit with 150 mm discs and replaceable inserts for sanding profiled parts.
BB unit
Two 300 mm sanding brushes.

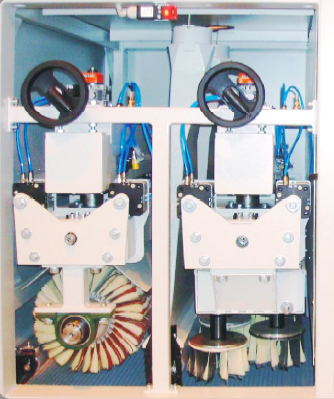

DB unit
A 300 mm sanding brush and a disc brushing unit with 150 mm discs.

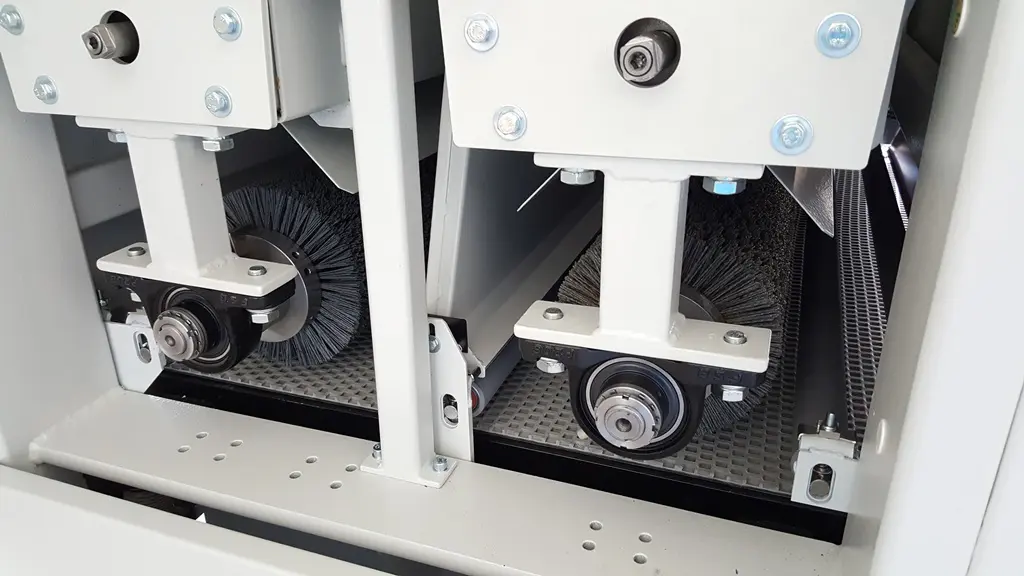

Working units of the texturing machines
B unit
A 200 mm sanding brush with a wire or nylon brush.
BB unit
Two 200 mm sanding brushes with a wire or nylon brush.
Brushing machine configuration
BB
Two 300 mm sanding brushes with replaceable inserts for sanding profiled parts and finishing
DB
A disc brushing unit with 150 mm discs and replaceable inserts for sanding profiled parts, and a 300 mm sanding brush with replaceable inserts for sanding profiled parts and finishing.
DBB
A disc brushing unit with 150 mm discs and replaceable inserts for sanding profiled parts, and two 300 mm sanding brushes with replaceable inserts for sanding profiled parts and finishing
BBBB
Four 300 mm sanding brushes with replaceable inserts for sanding profiled parts and finishing
Texturing machine configuration
BB
Two 300 mm sanding brushes with replaceable inserts for sanding profiled parts and finishing
BBBB
Four 300 mm sanding brushes with replaceable inserts for sanding profiled parts and finishing
Standard machine equipment
- Automatic setting and digital measurement of material thickness
- Motorised table lifting
- A frequency inverter for controlling the feed belt speed 3-12 m/min.
- Machine control with discrete buttons
- Frequency inverter for the D and B units (460-1200 rpm.
- Automatic centring of the feed belt
- Ammeter
- 1 infeed and 1 outfeed rubber-coated table roller
- CE standard
Accessories
- Touch control panel
- Table extension
- Vacuum table + vacuum fan
Technical specification
Brushing machines
Disc sanding brushes with a diameter of 150 mm and replaceable abrasive inserts for sanding profiled parts made of solid wood, MDF and lacquered parts.
Sanding brush with a diameter of 300 mm and replaceable inserts for sanding profiled parts made of solid wood, MDF and lacquered parts.
Texturing machines
An abralon or stainless steel texturing brush with a diameter of 200 mm for texturing and structuring solid wood surfaces.
- Working width 650 mm
- Počet jednotek 1 - 4
- Brush diameter 200 (300)mm
- Number of discs in unit D 7
- Tloušťka dílce 3 - 160 mm
- Feed speed 3 - 12 m/min.
